1. Technical parameters:
Project | Parameters |
Total length | 2100±20 mm; |
Table panel width | 500±20 mm; |
Minimum height | 700±20 mm; |
Lift stroke | (300±20) mm |
Head section | Removable, fold up 45o±2 and down 90o±2° |
Dorsal section | Top fold 70o±2, bottom fold 18o±2°; |
Leg plate | Split-legged, removable, top fold 20°, bottom fold 90°, horizontal abduction 90° |
Waist bridge (Central pelvic section) | mechanical drive, Lift stroke ≥120mm |
Longitudinal tilt | Head tilt down: 20°±2° |
Foot tilt down: 30°±2° | |
Roll Angle | Left roll: 20°±2° |
Right roll: 20°±2° | |
Front and back pan stroke | 300±20mm |
Flex/reflex positions | 210°/70° |
load capacity | 200kg |

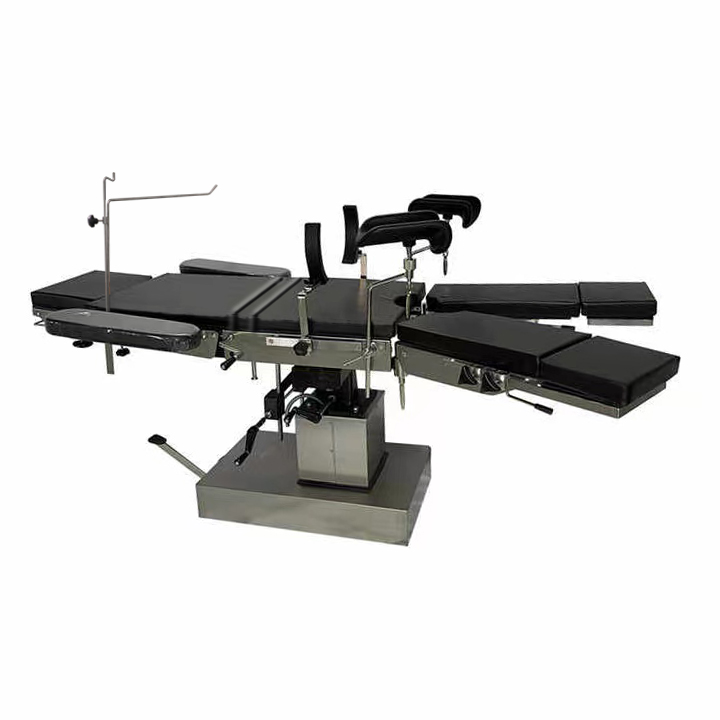

2. Product Introduction:
This product is used in hospital operating room for head, neck, chest and abdominal, perineum and limbs surgery and obstetrics and gynecology, ophthalmology, ENT, orthopedics and other operations.
3. The product has unique advantages:
1). The Angle adjustment of the backplane and leg plate of the comprehensive operating table is realized by the hand-operated worm, gear and rack mechanism.
2). The table and cover material can be selected according to user needs of high-quality cold-tied carbon steel spray or advanced stainless steel.
3). The use of oil pump hydraulic lifting, the required position adjustment during the operation are manipulated on both sides of the table.
4). With translation function.
4. Basic configuration list:
Serial Number | Accessory name | Quantity | Units |
1 | Operating table bed body | 1 | Set |
2 | Mattress | 1 | Set |
3 | Hand fixator (1 pair): | 1 | set |
4 | Arm support with mattress (1 pair) | 1 | set |
5 | Torso and leg fixator: | 1 | set |
6 | Side support | 1 | set |
7 | Support roller, horizontal: | 1 | set |
8 | Support roller, vertical: | 1 | set |
9 | iliopsoas roller: | 1 | pcs |
10 | Height-adjustable anesthesia shield. | 1 | set |
11 | Arm support for lateral position. | 1 | set |
12 | Patient transfer device (rollboard) | 1 | pcs |
13 | Product Certificate/Warranty card/receipt | 1 | Set |
14 | Instruction manual | 1 | Set |
山東德曼醫療設備集團有限公司一家專業研制手術室設備和病房護理設備的高新技術企業。公司坐落于山東省兗州工業園區，占地面積29000多平，公司總資產5億元，年生產能力20億元，主要產品有LED無影燈、各類電動、液壓手術臺、醫用吊塔、醫用吊橋、醫
用護理床等。
德曼醫療作為國產優秀醫療影像設備制造商，擁有24項核心專利技術。公司通過了歐盟CE認證、美國FDA認證、ISO9001質量管理體系認證、ISO13485醫療器械質量管理體系認證、ISO14001環境管理體系認證、ISO45001職業健康安全管理體系認證、中國環境
標志產品認證等。2023年公司被中國國家標準化管理委員會認定為“AAA級信用企業，被中國質量認證監督委員會和全國品牌認證聯盟評為“中國馳名商標”、2024年度專精特新中小企業。
